Javaee Angularjs Bootstrap How To Sort With Smart Table

By Damien · 2015-11-03 · angularjs java javascript bootstrap

alt text

Here is a sortable data-table. Using Twitter Bootstrap, ng-module SmartTable for front-end. And Spring-Data, Jersey JAXRS for backend.

Demo

Start with Tomcat:

http://localhost:8080/20151103-javaee-angularjs-bootstrap-sort/ http://localhost:8080/20151103-javaee-angularjs-bootstrap-sort/

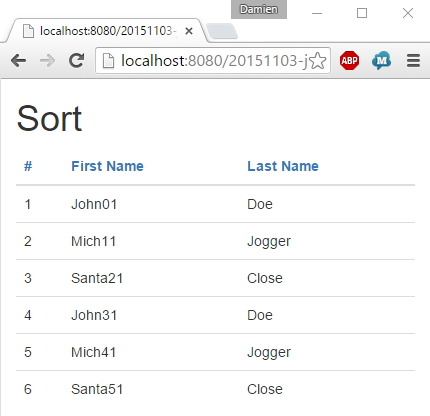

A data-table is displayed, with rows and sorter headers.

alt text

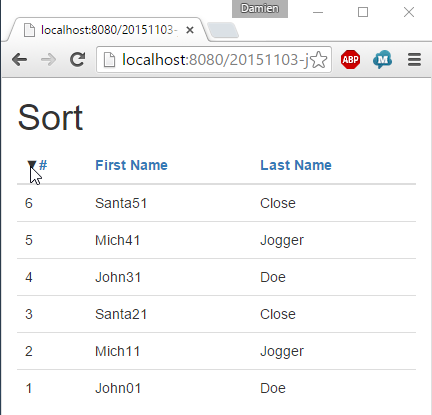

By clicking on row’s header, the row’s data order change and a new icon is displayed.

alt text

It’s possible to reverse the order.

alt text

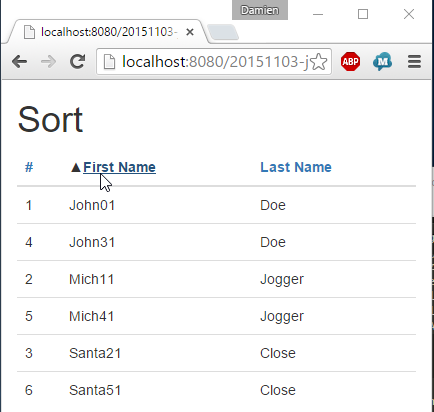

It work with both String and Nubmer type (see Java code).

alt text

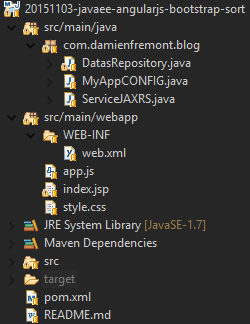

Source

alt text

DatasRepository.java

package com.damienfremont.blog;

import static org.springframework.data.domain.Sort.Direction.ASC;

import java.io.Serializable;
import java.util.ArrayList;
import java.util.List;

import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageImpl;
import org.springframework.data.domain.Pageable;
import org.springframework.data.domain.Sort;
import org.springframework.data.domain.Sort.Order;
import org.springframework.data.repository.PagingAndSortingRepository;

import com.damienfremont.blog.ServiceJAXRS.Person;
import com.google.common.base.Function;
import com.google.common.collect.Ordering;

public class DatasRepository implements PagingAndSortingRepository<Person, Serializable> {

  // MOCK
  static List<Person> datas;
  static {
    datas = new ArrayList<>();
    for (int i = 0; i < 5; i++) {
      datas.add(new Person(i + 1, "John" + i + 1, "Doe"));
      i++;
      datas.add(new Person(i + 1, "Mich" + i + 1, "Jogger"));
      i++;
      datas.add(new Person(i + 1, "Santa" + i + 1, "Close"));
    }
  }

  @Override
  public Page<Person> findAll(Pageable arg0) {
    List<Person> content = null;
    if (null != arg0.getSort()) {
      Order orderById = arg0.getSort().getOrderFor("id");
      Order orderByLastName = arg0.getSort().getOrderFor("lastName");
      Order orderByFirstName = arg0.getSort().getOrderFor("firstName");
      Order order = null;
      Function sortBy = null;
      if (orderById != null) {
        order = orderById;
        sortBy = sortById;
      } else if (orderByLastName != null) {
        order = orderByLastName;
        sortBy = sortByLastName;
      } else if (orderByFirstName != null) {
        order = orderByFirstName;
        sortBy = sortByFirstName;
      } else {
        order = new Order(ASC, "id");
        sortBy = sortById;
      }
      Ordering ordering = Ordering //
          .natural() //
          .onResultOf(sortBy);
      boolean isOrderAsc = (order.getDirection() == ASC);
      content = isOrderAsc //
          ? ordering.sortedCopy(datas) //
          : ordering.reverse().sortedCopy(datas);
    } else {
      content = new ArrayList<>(datas);
    }
    int total = datas.size();
    return new PageImpl<>(content, arg0, total);
  }

  Function<Person, Integer> sortById = new Function<Person, Integer>() {
    public Integer apply(Person foo) {
      return foo.id;
    }
  };

  Function<Person, String> sortByFirstName = new Function<Person, String>() {
    public String apply(Person foo) {
      return foo.firstName;
    }
  };

  Function<Person, String> sortByLastName = new Function<Person, String>() {
    public String apply(Person foo) {
      return foo.lastName;
    }
  };
...

MyAppCONFIG.java

package com.damienfremont.blog;

import java.util.HashSet;
import java.util.Set;
import javax.ws.rs.core.Application;

public class MyAppCONFIG extends Application {

  @Override
  public Set<Class<?>> getClasses() {
    Set<Class<?>> s = new HashSet<Class<?>>();
    s.add(ServiceJAXRS.class);
    return s;
  }
}

ServiceJAXRS.java

package com.damienfremont.blog;

import static org.springframework.data.domain.Sort.Direction.ASC;
import static org.springframework.data.domain.Sort.Direction.DESC;

import java.io.Serializable;

import javax.ws.rs.GET;
import javax.ws.rs.Path;
import javax.ws.rs.Produces;
import javax.ws.rs.QueryParam;
import javax.ws.rs.core.MediaType;

import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageRequest;
import org.springframework.data.domain.Pageable;
import org.springframework.data.domain.Sort;
import org.springframework.data.domain.Sort.Direction;

@Path("/person")
public class ServiceJAXRS {

  DatasRepository datas = new DatasRepository();

  @Path("/page")
  @GET
  @Produces(MediaType.APPLICATION_JSON)
  public Page<Person> getAll( //
      @QueryParam("sort") String sortPredicate, //
      @QueryParam("reverse") Boolean sortReverse //
  ) {
    Direction order = sortReverse ? DESC : ASC;
    Sort sort = new Sort(order, sortPredicate);
    Pageable pageRequest = new PageRequest(0, 100, sort);
    Page<Person> page = datas.findAll(pageRequest);
    return page;
  }

  // MODEL
  static class Person implements Serializable {
    private static final long serialVersionUID = 9167120287441116359L;
    public Integer id;
    public String firstName;
    public String lastName;

    public Person() { }

    public Person(Integer id, String firstName, String lastName) {
      super();
      this.id = id;
      this.firstName = firstName;
      this.lastName = lastName;
    }
  }

}

web.xml

<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
     http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
    version="3.1">

    <servlet>
        <servlet-name>REST</servlet-name>
        <servlet-class>org.glassfish.jersey.servlet.ServletContainer</servlet-class>
        <init-param>
            <param-name>javax.ws.rs.Application</param-name>
            <param-value>com.damienfremont.blog.MyAppCONFIG</param-value>
        </init-param>
        <init-param>
            <param-name>jersey.config.server.provider.classnames</param-name>
            <param-value>org.glassfish.jersey.media.multipart.MultiPartFeature</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>REST</servlet-name>
        <url-pattern>/api/*</url-pattern>
    </servlet-mapping>

    <servlet>
        <servlet-name>WEBJARS</servlet-name>
        <servlet-class>org.webjars.servlet.WebjarsServlet</servlet-class>
        <init-param>
            <param-name>disableCache</param-name>
            <param-value>true</param-value>
        </init-param>
        <load-on-startup>2</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>WEBJARS</servlet-name>
        <url-pattern>/webjars/*</url-pattern>
    </servlet-mapping>

</web-app>

app.js

'use strict';

var app = angular.module(
  'app',
  [ 'ngResource',
    'smart-table'
    ]);

app.factory('Service', function($resource) {
    return $resource('api/person/page');
});

app.controller('TableCtrl', function ($scope, Service) {

  $scope.callServer = function(tableState) {
    var sort = tableState.sort;
    var predicate = sort.predicate || 'id';
    var reverse = sort.reverse || false;
    Service.get({
        sort : predicate,
        reverse : reverse
      },
      function(pageable) {
        $scope.items = pageable.content;
    });
  };
});

index.jsp

<!DOCTYPE html>
<html
  ng-app="app">
<head>
<!-- LIBS CSS -->
<link rel="stylesheet" href="webjars/bootstrap/${bootstrap.version}/css/bootstrap.css">
<link rel="stylesheet" href="style.css">
<!-- LIBS JS -->
<script src="webjars/angularjs/${angularjs.version}/angular.js"></script>
<script src="webjars/angularjs/${angularjs.version}/angular-resource.js"></script>
<script src="webjars/angular-smart-table/${angular-smart-table.version}/dist/smart-table.js"></script>
<!-- YOUR JS -->
<script src="app.js"></script>
</head>
<body>
<div class="container">

<h1>Sort</h1>
<form
  ng-controller="TableCtrl">
<table class="table"
  st-table="items"
  st-pipe="callServer">
<thead>

<!-- HEADERS -->
<tr>
  <th st-sort="id">
    <a href="#">#</a></th>
  <th st-sort="firstName">
    <a href="#">First Name</a></th>
  <th st-sort="lastName">
    <a href="#">Last Name</a></th>
</tr>
</thead>

<!-- CONTENT -->
<tbody>
<tr ng-repeat="i in items">
  <td></td>
  <td></td>
  <td></td>
</tr>
</tbody>

</table>
</form>
</div>
</body>
</html>

style.css

.st-sort-ascent:before {
  content: '\25B2';
}
.st-sort-descent:before {
  content: '\25BC';
}

Project

https://github.com/DamienFremont/blog/tree/master/20151103-javaee-angularjs-bootstrap-sort https://github.com/DamienFremont/blog/tree/master/20151103-javaee-angularjs-bootstrap-sort

References

http://projects.spring.io/spring-data/ http://projects.spring.io/spring-data/

http://ngmodules.org/modules/Smart-Table http://ngmodules.org/modules/Smart-Table

http://lorenzofox3.github.io/smart-table-website/ http://lorenzofox3.github.io/smart-table-website/
